PROTAC® RAIL MOUNT HL-X PRO LONG GUN LIGHT
Long Range, Gun-Mounted Tactical Light

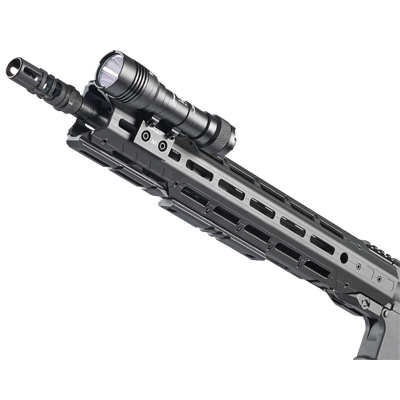

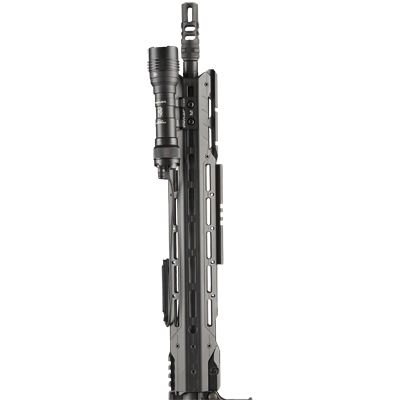

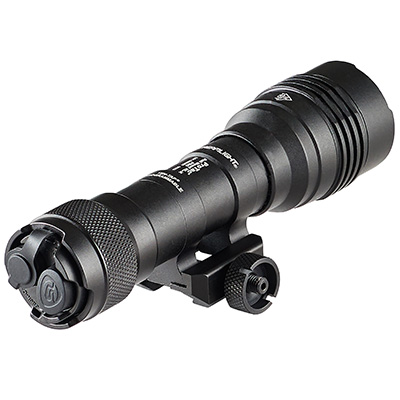

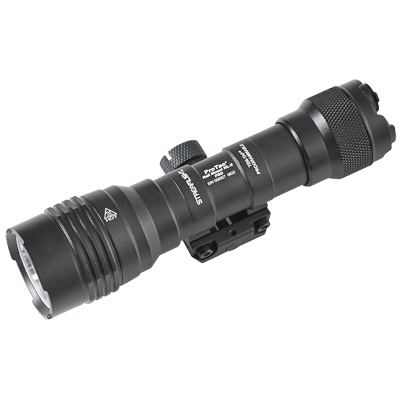

Part Numbers ListThe ProTac® Rail Mount HL-X Pro is a long range, low-profile, gun-mounted light that produces 50,000 candela and shines for 447 meters. Its Jack-Cap® tail cap switch offers operational switch redundancy with both push-button operation or remote pressure switch operation.

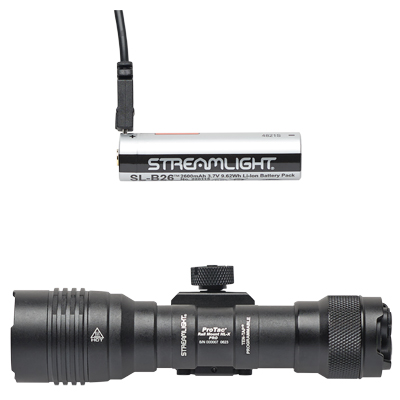

- Multi-Fuel: Uses (1) Streamlight SL-B26® protected Li-Ion USB rechargeable battery pack; also accepts (2) CR123A lithium batteries
- TEN-TAP® Programming Allows for Selection of Three Different Operating Programs:
1) High/Strobe 2) High Only 3) Low/High- High: 1,000 lumens; 50,000 candela; 447m beam distance; runs 1.25 hours (CR123A); runs 1.75 hours (SL-B26)
- Low: 60 lumens; 3,100 candela; 111m beam distance; runs 21 hours (CR123A); runs 24 hours (SL-B26)
- Strobe: runs 2.5 hours (CR123A); runs 3.5 hours (SL-B26)
All rights reserved. M-LOK® is a registered trademark of Magpul Industries Corp.
Product Specifications
High Lumens
1,000
Run Time on High
1.25 hours
Run Time on Low
21.00 hours
Beam Distance
447 meters
Max Candela
50,000
Battery Type
CR123A Lithium, SL-B26 Rechargeable Battery Pack
Battery Quantity
1 - 2
Length
5.43 inches (13.79 centimeters)
Weight
6.60 ounces (187.11 grams) - 7.20 ounces (204.12 grams)
Colors
Black
Full product information can be found in the DOCUMENTATION section.
Where to buy
Product Extra Info
C4® TECHNOLOGY LEAVES OTHER LEDs IN THE DARK.
NEW C4® LED TECHNOLOGY PUMPS UP THE BRIGHTNESS UP TO 3X MORE LIGHT INTENSITY.
Streamlight introduces a whole new kind of LED. With a brighter, more powerful, blinding light than any LED that’s come before. Our new Streamlight-engineered reflector with C4 Photonic Crystal technology almost triples the brightness and creates an intense beam that pierces the darkness. So you get the long-run times and indestructibility of an LED with a new level of brightness that leaves other LEDs in the dark.
C4 approximates the range and brightness of a xenon bulb
FIRE VULCAN® LED – BLUE LED TAILLIGHTS
|
|
Candela (peak beam intensity) |
Bulb Lumens |
|
8W Flood |
1500 |
150 |
|
20W Flood |
3000 |
400 |
|
8W Spot |
80,000 |
150 |
|
20W Spot |
105,000 |
400 |
|
8W Dual-filament Spot |
70,000 each |
157 |
|
Sidewinder Compact® II Light Output and Battery Run Time |
||||||
| LED TYPE | Illumination Output (100%) |
Low (10%) Output |
Medium 1 (25%) Output |
Medium 2 (45%) Output |
High (100%) Output |
Strobe (at 100% Output) |
| White C4® LED w/ CR123 | 55 Lumens 1175 Candela* 69m Beam Distance |
70 Hours w/ CR123/AA Lithium Battery 40 Hours w/ AA Alkaline Battery |
28 Hours w/ CR123/AA Lithium Battery 16 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 8 Hours w/ AA Alkaline Battery |
6 Hours w/ CR123/AA Lithium Battery 2 Hours w/ AA Alkaline Battery |
10 Hours w/ CR123/AA Lithium Battery 4 Hours w/ AA Alkaline Battery |
| White C4® LED w/ AA Lithium | 47 Lumens 1000 Candela* 63m Beam Distance |
|||||
| White C4® LED w/ AA Alkaline | 47 Lumens 1000 Candela* 63m Beam Distance |
|||||
| 5mm IR 880nm |
25mW/sr (min) radiant intensity |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
72 Hours w/ CR123/AA Lithium Battery 48 Hours w/ AA Alkaline Battery |
36 Hours w/ CR123/AA Lithium Battery 18 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 9 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 14 Hours w/ AA Alkaline Battery |
| 5mm Red 630nm |
1.5 Lumen 60 Candela* 15m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
72 Hours w/ CR123/AA Lithium Battery 48 Hours w/ AA Alkaline Battery |
36 Hours w/ CR123/AA Lithium Battery 18 Hours w/ AA Alkaline Battery |
16 Hours w/ CR123/AA Lithium Battery 9 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 14 Hours w/ AA Alkaline Battery |
| 5mm Blue 470nm |
1.8 Lumens 130 Candela* 23m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
60 Hours w/ CR123/AA Lithium Battery 36 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 12 Hours w/ AA Alkaline Battery |
12 Hours w/ CR123/AA Lithium Battery 6 Hours w/ AA Alkaline Battery |
18 Hours w/ CR123/AA Lithium Battery 10 Hours w/ AA Alkaline Battery |
| 5mm Green 527nm |
4.5 Lumens 68 Candela* 16m Beam Distance |
100+ Hours w/ CR123/AA Lithium Battery 100+ Hours w/ AA Alkaline Battery |
60 Hours w/ CR123/AA Lithium Battery 36 Hours w/ AA Alkaline Battery |
24 Hours w/ CR123/AA Lithium Battery 12 Hours w/ AA Alkaline Battery |
12 Hours w/ CR123/AA Lithium Battery 6 Hours w/ AA Alkaline Battery |
18 Hours w/ CR123/AA Lithium Battery 10 Hours w/ AA Alkaline Battery |
| *Candela Peak Beam Intensity All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
Sidewinder Compact® 185° Articulating Head
This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-HH01, NSN Number 6230-01-574-6027. This authorization does not constitute an endorsement by the U.S. Army
Sidewinder Compact®
Rubber dome actuator and 4-position pull-to-turn locking rotary selector knob with IR tactile indicator (or green LED For tactical mode) offers easy operation even when wearing heavy gloves
Sidewinder Compact®
Clips onto helmet with helmet mount accessory. Fully rotates on mount in either direction. Sidewinder Compact is available with or without helmet mount.
Sidewinder Compact®
Durable belt/clothing clip with integral helmet mount features allow for hands-free use
|
Sidewinder Compact Light Output and Battery Run Time |
||||||
| LED TYPE | Illumination Output (100%) |
Low (5%) Output |
Medium 1 (25%) Output |
Medium 2 (60%) Output |
High (100%) Output |
Strobe (at 100% Output) |
| White C4® LED | 55 Lumens 1175 Candela* 69m Beam Distance |
60+ Hours | 28 Hours | 9 Hours | 5.25 Hours | 9 Hours |
| 5mm IR 880nm |
25mW/sr (min) radiant intensity |
100+ Hours | 48 Hours | 24 Hours | 14 Hours | 24 Hours |
| 5mm Red 630nm |
1 Lumen 40 Candela* 13m Beam Distance |
100+ Hours | 48 Hours | 24 Hours | 14 Hours | 24 Hours |
| 5mm Blue 470nm |
1.8 Lumens 130 Candela* 23m Beam Distance |
100+ Hours | 36 Hours | 18 Hours | 10 Hours | 18 Hours |
| 5mm Green 527nm |
4.5 Lumens 68 Candela* 16m Beam Distance |
100+ Hours | 36 Hours | 18 Hours | 10 Hours | 18 Hours |
| *Candela Peak Beam Intensity All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-TH01, NSN Number 6230-01-571-8752. This authorization does not constitute an endorsement by the U.S. Army
|
Sidewinder® w/ C4® Light Output and 2 AA Alkaline Battery Run Time |
||||||
| LED | Light Output | Low (5%) Output |
Medium 1 (25%) Output |
Medium 2 (60%) Output |
High (100%) Output |
Strobe (at 100% output) |
| White C4® LED | 55 Lumens 1175 Candela* 69m Beam Distance |
100 Hours+ | 45 Hours | 11 Hours | 5.5 Hours | 10 Hours |
| 5mm IR LED (880nm) | 25mW/sr (min) radiant intensity | 200 Hours+ | 140 Hours | 60 Hours | 24 Hours | 40 Hours |
| 5mm Red LED (630nm) | 1 Lumen 40 Candela* 13m Beam Distance |
200 Hours+ | 140 Hours | 60 Hours | 24 Hours | 40 Hours |
| 5mm Blue LED (470nm) | 1.8 Lumens 130 Candela* 23m Beam Distance |
150 Hours+ | 100 Hours | 35 Hours | 16 Hours | 30 Hours |
| 5mm Green LED (527nm) | 4.5 Lumens 68 Candela* 16m Beam Distance |
150 Hours+ | 100 Hours | 35 Hours | 16 Hours | 30 Hours |
| *Candela Peak Beam Intensity Illumination output electronically regulated. (See model for specific LED configuration) |
||||||
VANTAGE® MOUNTING OPTIONS
The Vantage will mount either above...
...or below the helmet brim.
VANTAGE®TAIL LIGHT AND SWITCH
Dual direction, easy access On/Off switch
470nm ultra-bright blue taillight LED
