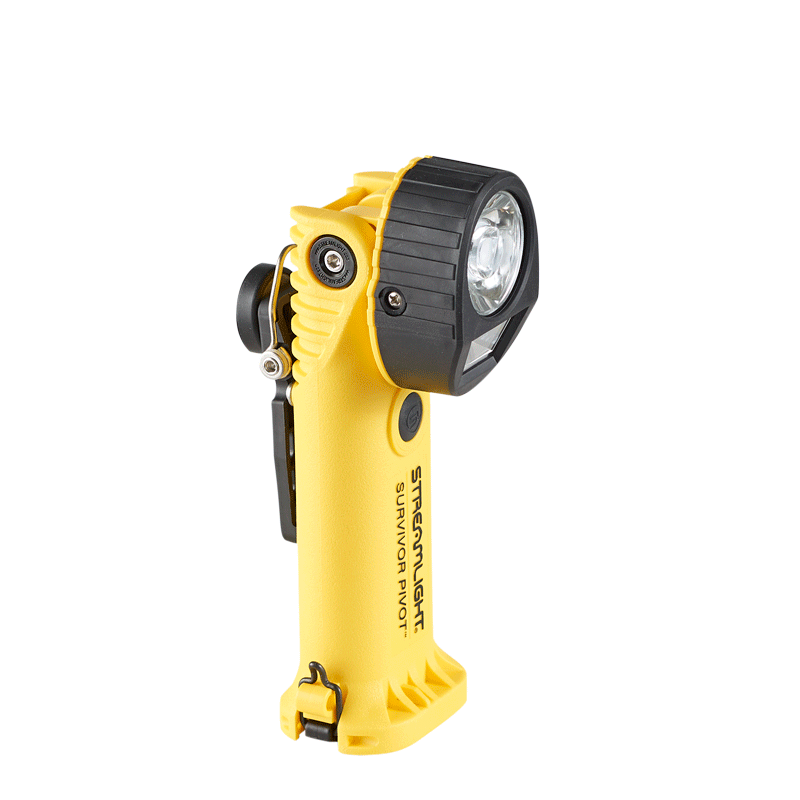

  • Yellow Survivor Pivot

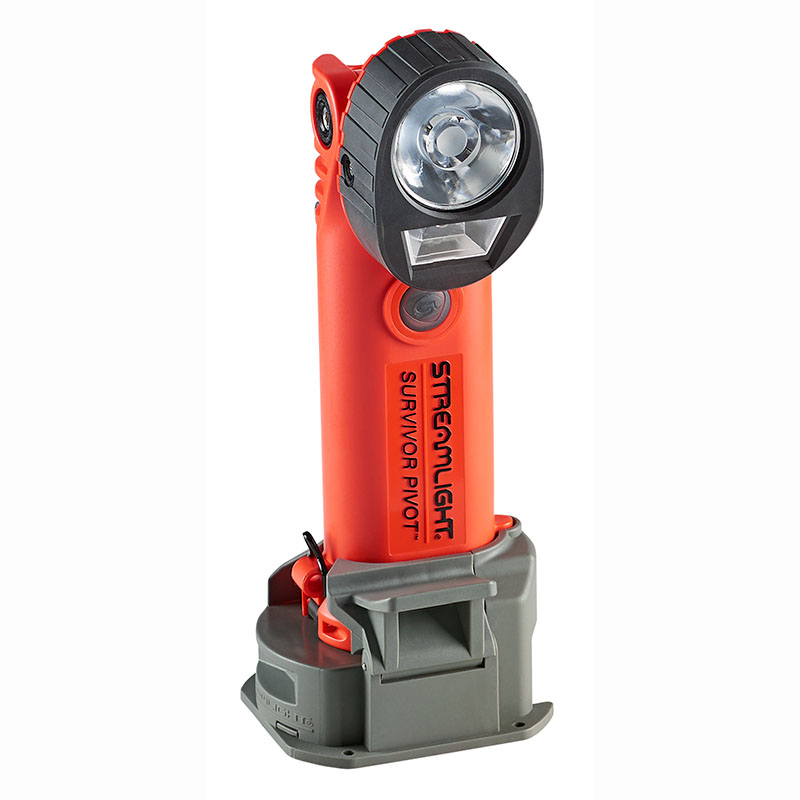

  • Survivor Pivot in Charger

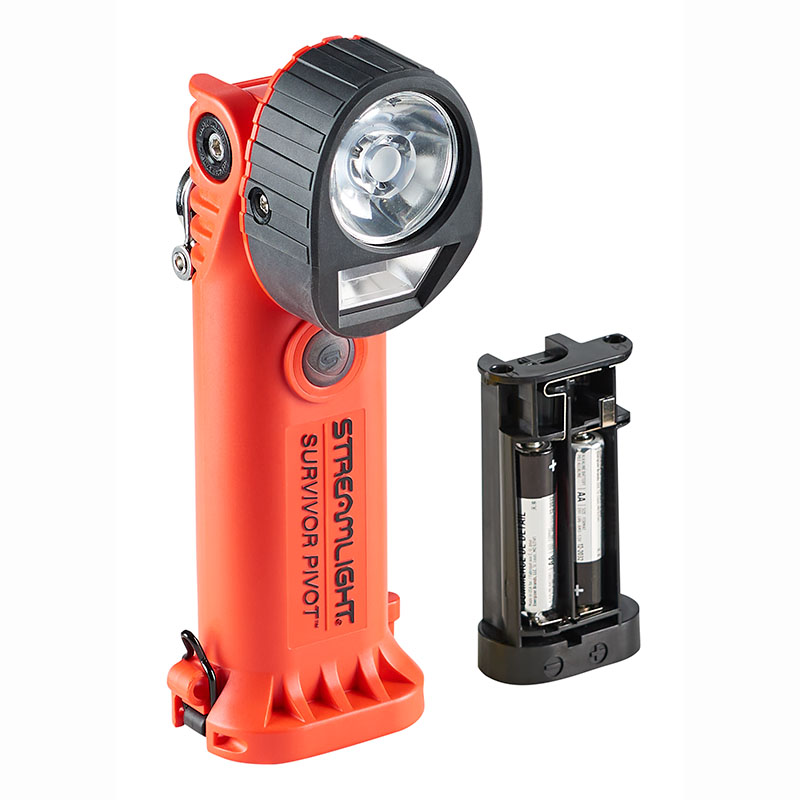

  • Survivor Pivot with Battery Carrier

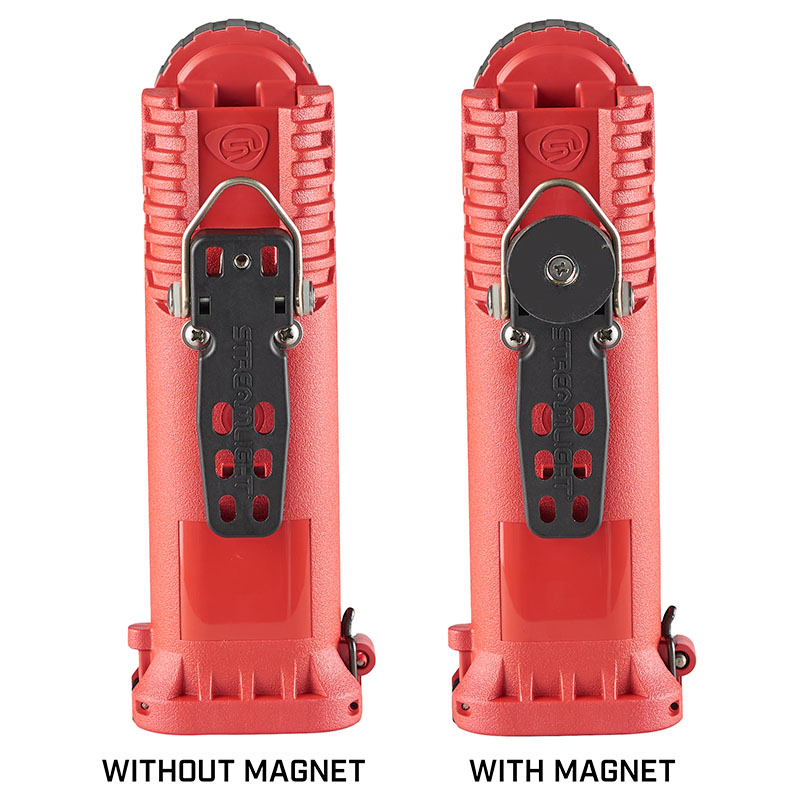

  • Survivor Pivot Magnet Options
  • Survivor Pivot
  • Survivor Pivot
  • Survivor-Pivot_1
  • Survivor-Pivot_4
  • Survivor-Pivot_5
  • Survivor-Pivot_2
Print
SURVIVOR PIVOT® :: RECHARGEABLE OR ALKALINE
  • Orange Survivor Pivot
  • Yellow Survivor Pivot
  • Survivor Pivot in Charger
  • Survivor Pivot with Battery Carrier
  • Survivor Pivot Magnet Options
  • Survivor Pivot
  • Survivor Pivot
  • Survivor-Pivot_1
  • Survivor-Pivot_4
  • Survivor-Pivot_5
  • Survivor-Pivot_2


Intrinsically Safe Class I, Div. 1 Rated Flashlight

Part Numbers List

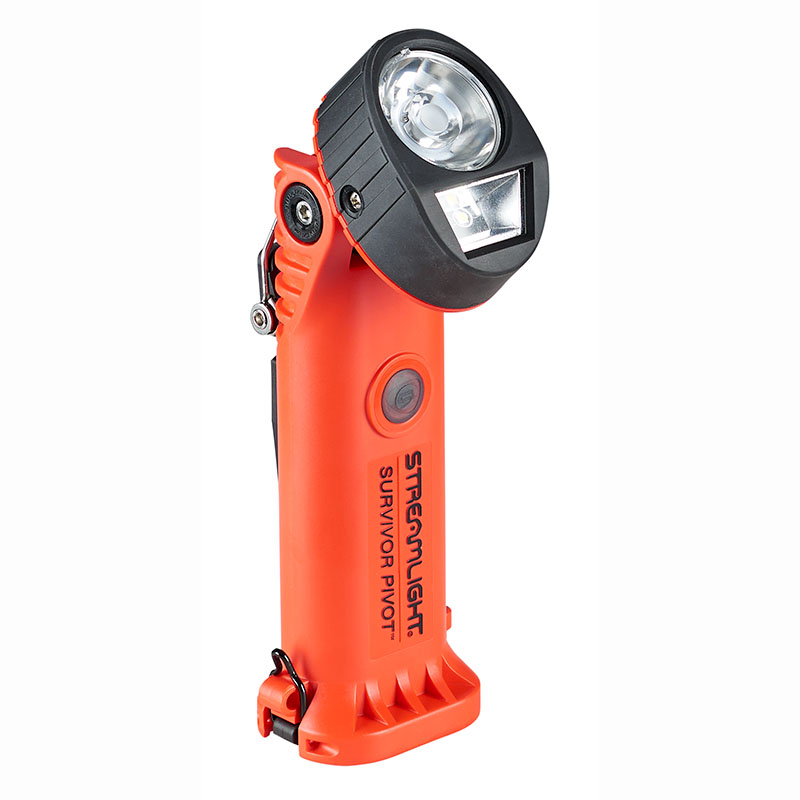

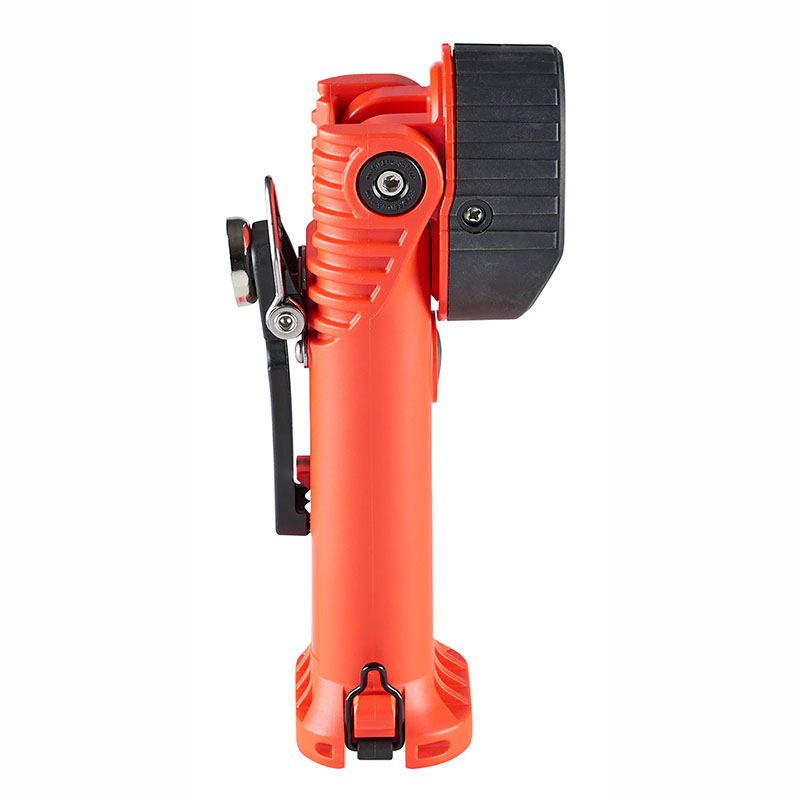

The Survivor Pivot® features a dual beam and a 90-degree articulating head. Its spot beam uses a cool white, high-power LED for maximum distance illumination and its flood beam is angled downward for area illumination.

  • Click here for data sheet
  • Class 1, Div. 1 rated
  • Available in Rechargeable and Alkaline models
  • LED technology with various lighting modes:
    • Rechargeable model (high mode)
      • Spot: 300 lumens; 369m beam distance; runs 4.25 hours
      • Flood: 300 lumens; 35m beam distance; runs 4.25 hours
      • Spot/Flood Combo: 325 lumens; 276m beam distance; runs 3.75 hours
    • Alkaline model (high mode)
      • Spot: 300 lumens; 369m beam distance; runs 5.5 hours
      • Flood: 300 lumens; 35m beam distance; runs 5.5 hours
      • Spot/Flood Combo: 325 lumens; 276m beam distance; runs 4.5 hours
  • THE PRODUCT SPECIFICATIONS BELOW REFER TO THE RECHARGEABLE MODEL ONLY

Note: The Survivor Pivot® is not compatible with legacy Survivor® chargers.

Product Specifications

High Lumens
325
Run Time on High
3.75 hours
Run Time on Low
16.00 hours
Beam Distance
369 meters
Max Candela
34,000
Battery Type
Lithium Ion Cell Pack, AA Alkaline
Length
7.93 inches (20.14 centimeters)
Weight
1 pounds 0.20 ounces (459.26 grams) - 1 pounds 1.60 ounces (498.95 grams)
Colors
Orange, Yellow

Full product information can be found in the DOCUMENTATION section.

Loading...
Meets applicable United Kingdom and European Community Directives

Class I & II, Division 1, Groups A, B, C, D, E, F, G; Class III, T-Code: T3/T4

Flashlight meets 500°F requirements of NFPA 1971-8.6 (2018)

Charger meets requirements of NFPA 1900-11.1.11.2 (2024) mounted in any position

CEC Compliant
CEC Compliant (Rechargeable model only)

Where to Buy

Enter your zip/postal code below to locate a Streamlight dealer.

Loading...
Meets applicable United Kingdom and European Community Directives

Class I & II, Division 1, Groups A, B, C, D, E, F, G; Class III, T-Code: T3/T4

Flashlight meets 500°F requirements of NFPA 1971-8.6 (2018)

Charger meets requirements of NFPA 1900-11.1.11.2 (2024) mounted in any position

CEC Compliant
CEC Compliant (Rechargeable model only)
