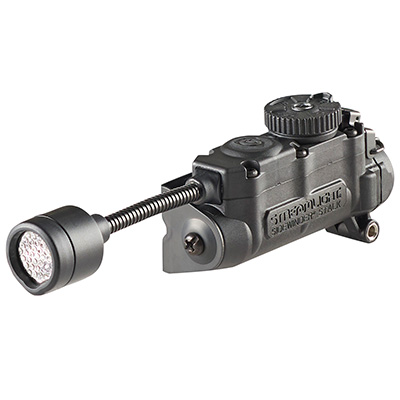

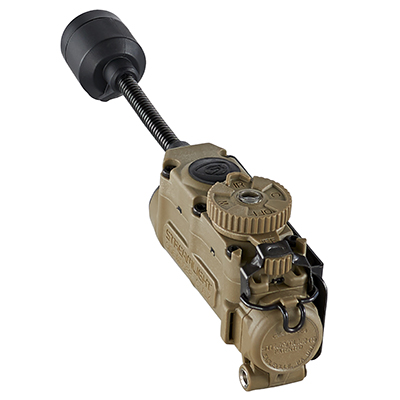

SIDEWINDER STALK®
Military Helmet Light System with Flexible Stalk

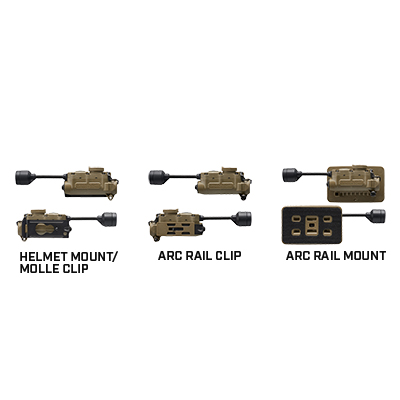

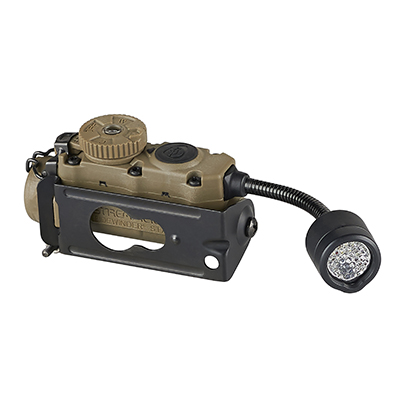

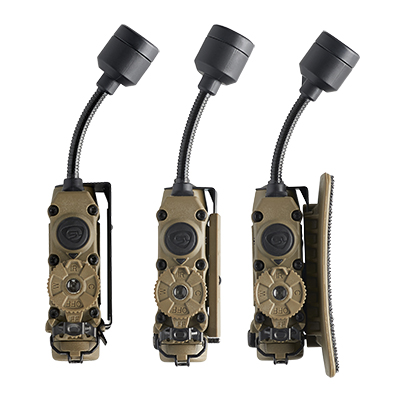

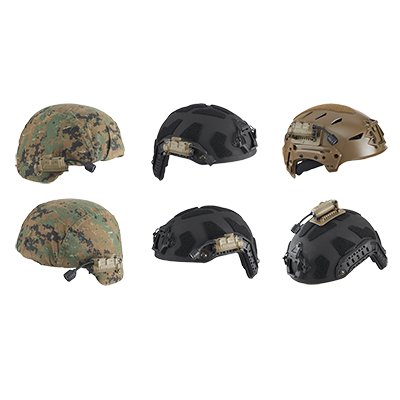

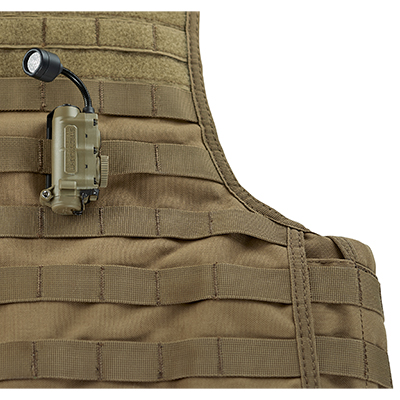

Part Numbers ListDesigned to minimize the number of illuminators an operator must carry, the low-profile Sidewinder Stalk® provides ultimate maneuverability, multiple mounting options, and a flexible stalk to aim the beam. Multi-fuel capability allows it to accept more than one battery type. Features visible white, multi-colored, and IR LEDs. In addition, a separate Identification Friend or Foe (IFF) switch lets you use both the main light and IFF when needed.
- Features white, IR, red, blue, and green LEDs – all located in the head mounted on a flexible stalk – each with low, medium, high, and strobe modes along with an additional IR/IFF beacon
- White LED Output at 100%:
- High – CR123A: 76 lumens; 28m beam; runs 5.6 hours
- High – AA: 57 lumens; 23m beam; runs 6 hours (AA lithium) // 3.8 hours (AA alkaline)
Product Specifications
Lumens (High)
76
Lumens (Medium)
20
Lumens (Low)
8
Run Time (High)
5.60 hours
Run Time (Medium)
15.00 hours
Run Time (Low)
95.00 hours
Beam Distance (High)
28 meters
Beam Distance (Medium)
12 meters
Beam Distance (Low)
7 meters
Candela (High)
200
IR (High)
5 mW
Battery Type
AA Alkaline, AA Lithium, CR123A Lithium
Battery Quantity (Max)
1
Length (Max)
5.51 inches (14.00 centimeters)
Weight (Max)
3.20 ounces (90.72 grams)
Weight (Min)
2.88 ounces (81.65 grams)
Colors
Coyote, Black
Lumens (High) [AA Alkaline]
57
Run Time (High) [AA Alkaline]
3.80 hours
Run Time (Medium) [AA Alkaline]
10.00 hours
Run Time (Low) [AA Alkaline]
20.00 hours
Beam Distance (High) [AA Alkaline]
23 meters
Candela (High) [AA Alkaline]
130
Lumens (High) [AA Lithium]
57
Run Time (High) [AA Lithium]
6.00 hours
Run Time (Medium) [AA Lithium]
13.00 hours
Run Time (Low) [AA Lithium]
33.00 hours
Beam Distance (High) [AA Lithium]
23 meters
Candela (High) [AA Lithium]
130
Full product information can be found in the DOCUMENTATION section.
