Bright 1,000 Lumen Tactical Long Gun Light

Part Numbers List

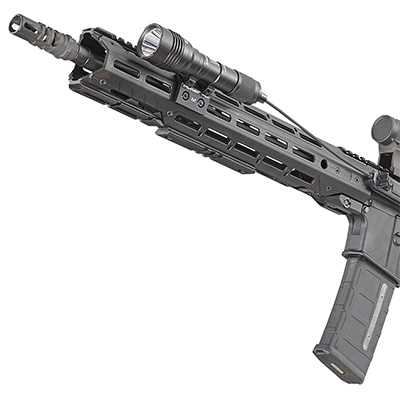

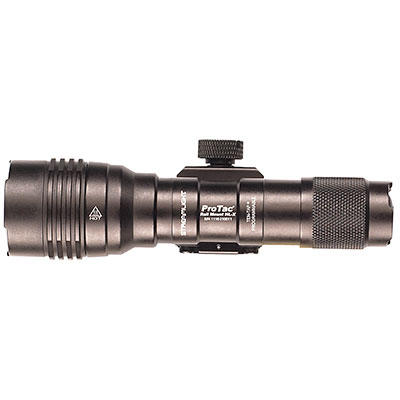

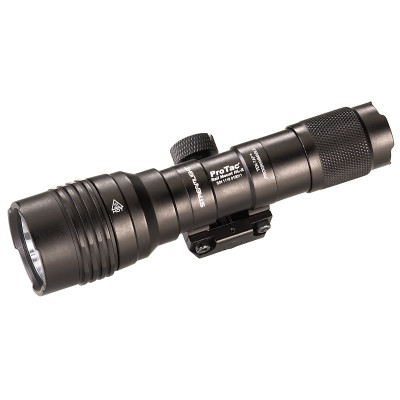

The ProTac® Rail Mount HL-X is a 1,000 lumen weapon-mounted light featuring a fixed mount for MIL-STD-1913 (Picatinny) rails or with the included M-LOK® mount allowing for alternative mounting options to M-LOK® and M-LOK® compatible rail systems. It uses either a remote pressure switch or a standard push-button tail cap switch, and can run on multiple battery types.

  • Click here for data sheet
  • TEN-TAP® programming allows for selection of three different operating programs:
    1) high/strobe 2) high only  3) low/high
    • High: 1,000 lumens; 447m beam distance; 50,000 candela; runs 1.25 hours (CR123A); runs 1.75 hours (SL-B26)
    • Low: 60 lumens; 111m beam distance; 3,100 candela; runs 21 hours (CR123A); runs 24 hours (SL-B26)

TLR FIT GUIDE

Product Specifications

High Lumens
1,000
Run Time
1.25 hours
Beam Distance
447 meters
Max Candela
50,000
Battery Type
Streamlight SL-B26 Protected Li-Ion USB Rechargeable Battery Pack, CR123A Lithium
Battery Quantity
1 - 2
Length
5.43 inches (13.79 centimeters)
Weight
6.40 ounces (181.44 grams) - 6.90 ounces (195.61 grams)
Colors
Black

Full product information can be found in the DOCUMENTATION section.

Where to Buy

Enter your zip/postal code below to locate a Streamlight dealer.

Where to buy

Enter your zip/postal code

Product Extra Info

C4® TECHNOLOGY LEAVES OTHER LEDs IN THE DARK.

NEW C4® LED TECHNOLOGY PUMPS UP THE BRIGHTNESS UP TO 3X MORE LIGHT INTENSITY.

c4-logo-w-regStreamlight introduces a whole new kind of LED. With a brighter, more powerful, blinding light than any LED that’s come before. Our new Streamlight-engineered reflector with C4 Photonic Crystal technology almost triples the brightness and creates an intense beam that pierces the darkness. So you get the long-run times and indestructibility of an LED with a new level of brightness that leaves other LEDs in the dark.

C4 approximates the range and brightness of a xenon bulb

FIRE VULCAN® LED – BLUE LED TAILLIGHTS

firevulcanled_back

Sidewinder Compact® II Light Output and Battery Run Time

LED TYPE Illumination
Output (100%)
Low
(10%) Output
Medium 1
(25%) Output
Medium 2
(45%) Output
High
(100%) Output
Strobe
(at 100% Output)
White C4® LED w/ CR123 55 Lumens
1175 Candela*
69m Beam Distance

70 Hours w/ CR123/AA Lithium Battery

40 Hours w/ AA Alkaline Battery

28 Hours w/ CR123/AA Lithium Battery

16 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

8 Hours w/ AA Alkaline Battery

6 Hours w/ CR123/AA Lithium Battery

2 Hours w/ AA Alkaline Battery

10 Hours w/ CR123/AA Lithium Battery

4 Hours w/ AA Alkaline Battery

White C4® LED w/ AA Lithium 47 Lumens
1000 Candela*
63m Beam Distance
White C4® LED w/ AA Alkaline 47 Lumens
1000 Candela*
63m Beam Distance
5mm IR
880nm
25mW/sr (min)
radiant intensity

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

72 Hours w/ CR123/AA Lithium Battery

48 Hours w/ AA Alkaline Battery

36 Hours w/ CR123/AA Lithium Battery

18 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

9 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

14 Hours w/ AA Alkaline Battery

5mm Red
630nm
1.5 Lumen
60 Candela*
15m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

72 Hours w/ CR123/AA Lithium Battery

48 Hours w/ AA Alkaline Battery

36 Hours w/ CR123/AA Lithium Battery

18 Hours w/ AA Alkaline Battery

16 Hours w/ CR123/AA Lithium Battery

9 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

14 Hours w/ AA Alkaline Battery

5mm Blue
470nm
1.8 Lumens
130 Candela*
23m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

60 Hours w/ CR123/AA Lithium Battery

36 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

12 Hours w/ AA Alkaline Battery

12 Hours w/ CR123/AA Lithium Battery

6 Hours w/ AA Alkaline Battery

18 Hours w/ CR123/AA Lithium Battery

10 Hours w/ AA Alkaline Battery

5mm Green
527nm
4.5 Lumens
68 Candela*
16m Beam Distance

100+ Hours w/ CR123/AA Lithium Battery

100+ Hours w/ AA Alkaline Battery

60 Hours w/ CR123/AA Lithium Battery

36 Hours w/ AA Alkaline Battery

24 Hours w/ CR123/AA Lithium Battery

12 Hours w/ AA Alkaline Battery

12 Hours w/ CR123/AA Lithium Battery

6 Hours w/ AA Alkaline Battery

18 Hours w/ CR123/AA Lithium Battery

10 Hours w/ AA Alkaline Battery

*Candela Peak Beam Intensity
All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration)

Sidewinder Compact® 185° Articulating Head

SWINDER_CMPCT_180DEG

tscg_logo_150

This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-HH01, NSN Number 6230-01-574-6027. This authorization does not constitute an endorsement by the U.S. Army

Sidewinder Compact®

Rubber dome actuator and 4-position pull-to-turn locking rotary selector knob with IR tactile indicator (or green LED For tactical mode) offers easy operation even when wearing heavy gloves

SWINDER-COMPCT_DOME

Sidewinder Compact®

Clips onto helmet with helmet mount accessory. Fully rotates on mount in either direction. Sidewinder Compact is available with or without helmet mount.

SWINDER-CMPCT_HELMET

Sidewinder Compact®

Durable belt/clothing clip with integral helmet mount features allow for hands-free use

SWINDER-CMPCT_BACK

Sidewinder Compact Light Output and Battery Run Time

LED TYPE Illumination
Output (100%)
Low
(5%) Output
Medium 1
(25%) Output
Medium 2
(60%) Output
High
(100%) Output
Strobe
(at 100% Output)
White C4® LED 55 Lumens
1175 Candela*
69m Beam Distance
60+ Hours 28 Hours 9 Hours 5.25 Hours 9 Hours
5mm IR
880nm
25mW/sr (min)
radiant intensity
100+ Hours 48 Hours 24 Hours 14 Hours 24 Hours
5mm Red
630nm
1 Lumen
40 Candela*
13m Beam Distance
100+ Hours 48 Hours 24 Hours 14 Hours 24 Hours
5mm Blue
470nm
1.8 Lumens
130 Candela*
23m Beam Distance
100+ Hours 36 Hours 18 Hours 10 Hours 18 Hours
5mm Green
527nm
4.5 Lumens
68 Candela*
16m Beam Distance
100+ Hours 36 Hours 18 Hours 10 Hours 18 Hours
*Candela Peak Beam Intensity
All runtime claims to 10% of initial output level. Illumination output electronically regulated. (See model for specific LED configuration)

tscg_logo_150

This product meets the manufacturing and performance testing requirements as authorized by the Product Manager - Clothing and Individual Equipment, Authorization Number FL090526-TH01, NSN Number 6230-01-571-8752. This authorization does not constitute an endorsement by the U.S. Army

Sidewinder® w/ C4® Light Output and 2 AA Alkaline Battery Run Time

LED Light Output Low
(5%) Output
Medium 1
(25%) Output
Medium 2
(60%) Output
High
(100%) Output
Strobe
(at 100% output)
White C4® LED 55 Lumens
1175 Candela*
69m Beam Distance
100 Hours+ 45 Hours 11 Hours 5.5 Hours 10 Hours
5mm IR LED (880nm) 25mW/sr (min) radiant intensity 200 Hours+ 140 Hours 60 Hours 24 Hours 40 Hours
5mm Red LED (630nm) 1 Lumen
40 Candela*
13m Beam Distance
200 Hours+ 140 Hours 60 Hours 24 Hours 40 Hours
5mm Blue LED (470nm) 1.8 Lumens
130 Candela*
23m Beam Distance
150 Hours+ 100 Hours 35 Hours 16 Hours 30 Hours
5mm Green LED (527nm) 4.5 Lumens
68 Candela*
16m Beam Distance
150 Hours+ 100 Hours 35 Hours 16 Hours 30 Hours
*Candela Peak Beam Intensity
Illumination output electronically regulated. (See model for specific LED configuration)

VANTAGE® MOUNTING OPTIONS

The Vantage will mount either above...
Vantage Above
...or below the helmet brim.
Vantage Below

VANTAGE®TAIL LIGHT AND SWITCH

Dual direction, easy access On/Off switch
Vantage Blue LED
470nm ultra-bright blue taillight LED
